| Feature | Description |
|---|---|
| Display | 19‑inch, 4K HDR DCI‑P3 rackmount touchscreen display |
| Video Monitoring | Hybrid NDI, SDI, and HDMI monitoring |
| NDI HX3 Full‑Screen | View one NDI HX3 source full‑screen |
| NDI Quad‑View | View up to four NDI sources simultaneously |
| NDI Performance | High‑quality, low‑latency NDI HX3 video over Ethernet |
| SDI/HDMI Monitoring | Monitor a single SDI or HDMI source full‑screen |
| Video I/O | 1× 12G‑SDI input/output, 1× HDMI input/output |
| Audio Output | XLR audio output |
| Monitoring Tools | EL Zone false color, focus peaking, waveform, vectorscope, zebra, more |
| User Controls | User‑definable function buttons |

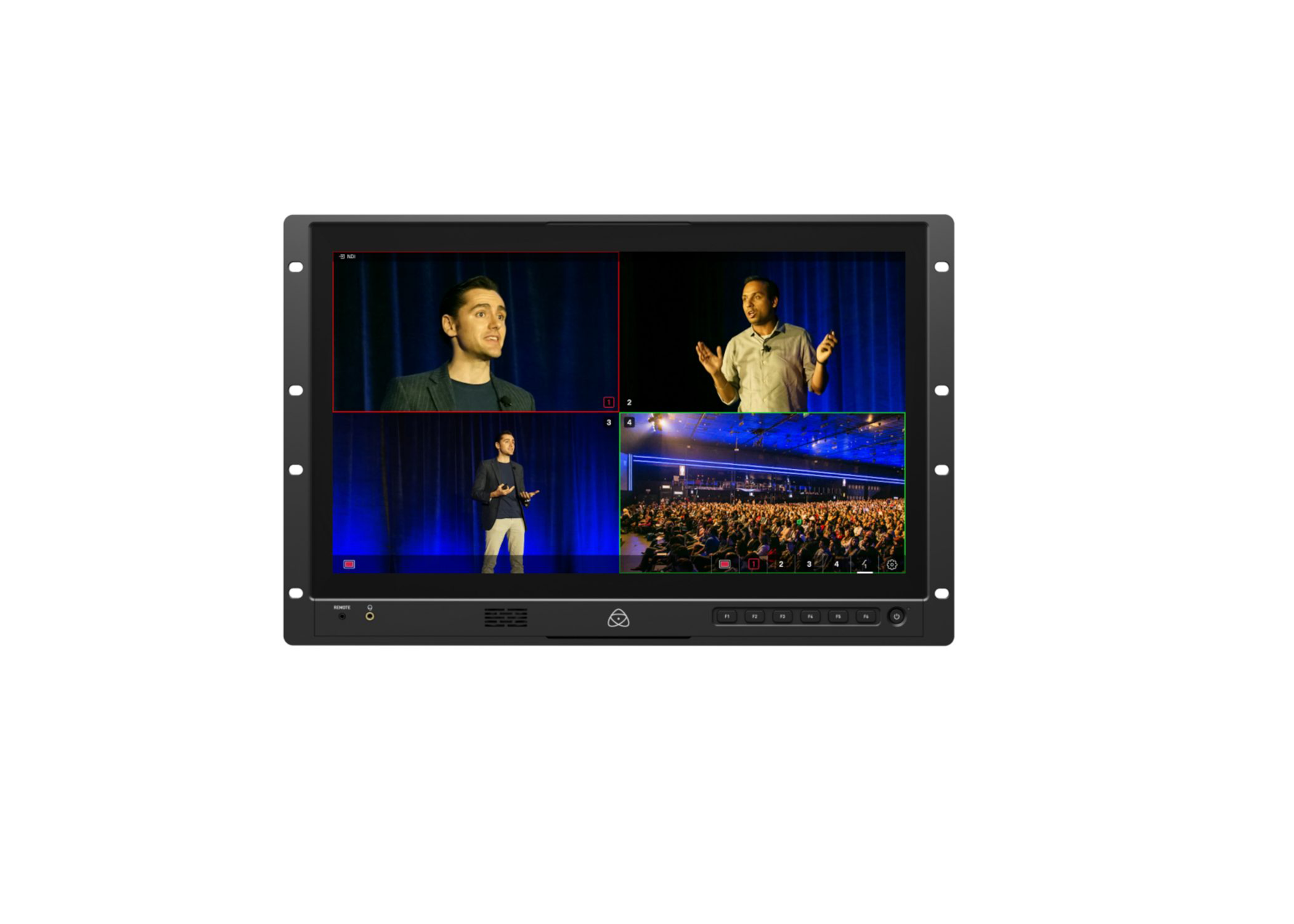

Shogun AV-19M concentrates the core monitoring capabilities of the Shogun AV-19 series into a dedicated monitor. It is an ideal choice for productions that already have established recording and switching systems but need accurate, large‑format monitoring for NDI, SDI or HDMI sources.
Receive NDI® HX3 video over Ethernet and view a single source full-screen or bring up to four NDI sources together in a quad-view layout. This gives production teams a clear overview of multiple networked feeds without requiring a separate multiview system.
With no integrated recording or live switching, Shogun AV-19M provides a streamlined solution for production galleries, control rooms, OB vehicles and video villages. Its rack-ready construction also makes it well suited to portable flypacks for live events and location production.
Monitor audio embedded within SDI, HDMI or NDI video, with on-screen meters, built-in speakers and headphone monitoring. Professional XLR connectivity supports integration with established production audio workflows.
