SWIT 21.5" Quad-Link 4K Production Monitor

SWIT 21.5" Quad-Link 4K Production Monitor

Name: SWIT 21.5" Quad-Link 4K Production Monitor
Brand: SWIT
SKU: SF-2443-IBV1
Availability: InStock

Brand: SWIT

MFR: FM-215HDR

SKU: SF-2443-IBV1

Price Available Upon Request

21.5" 1920 x 1080 QLED Display
12G-SDI and 3G-SDI Inputs
Supports up to 4K Resolutions
178° Viewing Angle, 1000:1 Contrast
1000 cd/m² Maximum Brightness
HDMI 2.0, RS-485, and GPI Ports
Multiple Video Assist Functions

Items Included

SWIT 21.5" Quad-Link 4K Production Monitor
Screen Protector
2 x Cheese-Style Plate
V-Mount Battery Plate
Power Cable
Flight Case

(In Stock)

Request Now

Categories: Monitors

Use the 21.5" Quad-Link 4K Production Monitor from SWIT to direct your next film or broadcast production thanks to its 1920 x 1080 QLED panel display with video assist and multiview functions. The screen has a 178° viewing angle, a 1000:1 contrast ratio, and 1000 cd/m² maximum brightness for improved visibility in indoor and outdoor applications. 12G-SDI, HDMI 2.0, and 3G-SDI ports support up to 4K video resolutions and facilitate quad-link and multiview configurations.

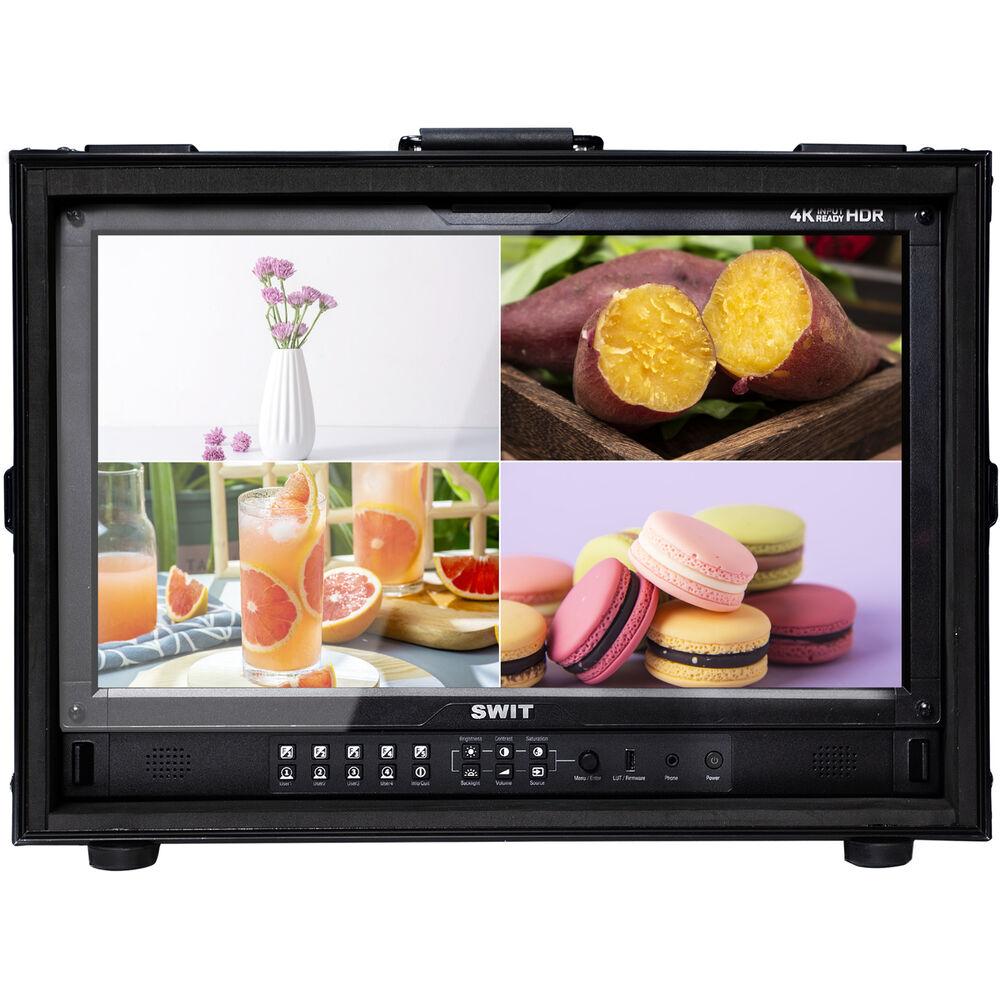

Video inputs can be displayed in quad-view, picture-by-picture, and picture-in-picture multiview modes. You can even select HDR/SDR gamma and color gamut independently for each input.

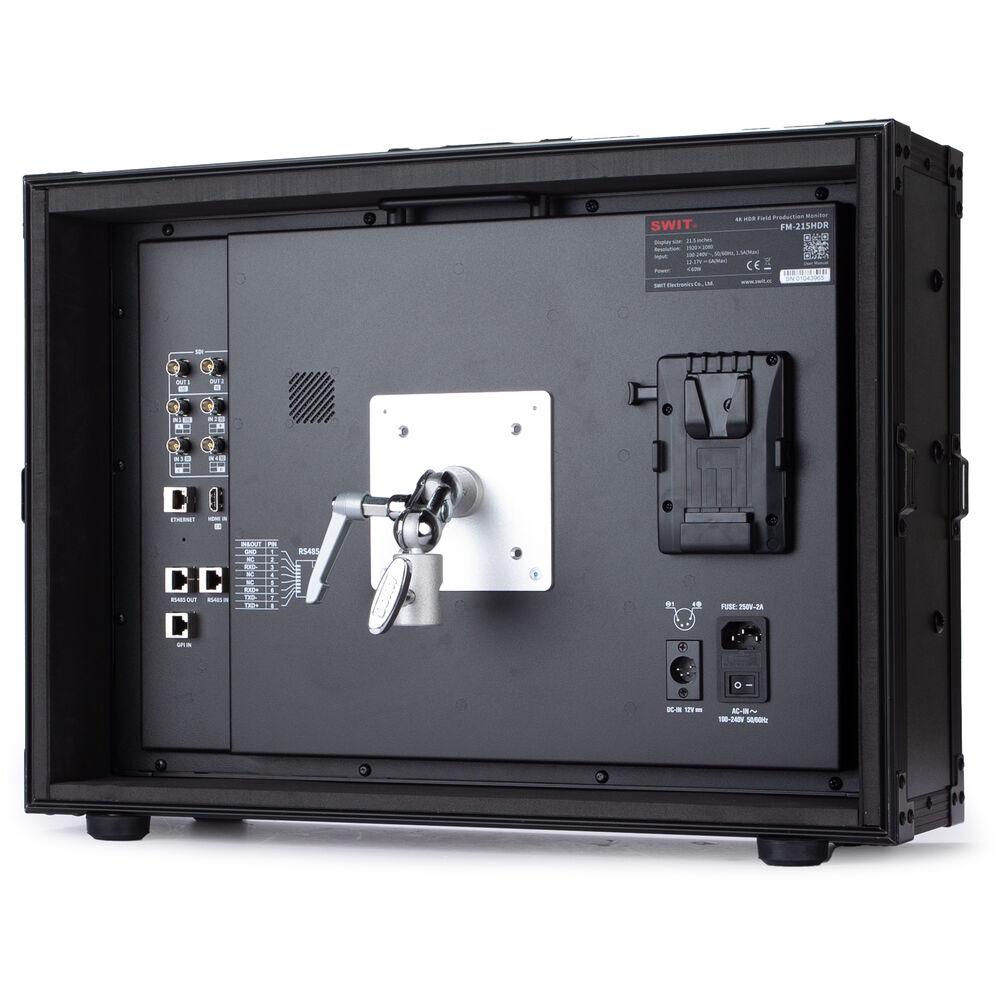

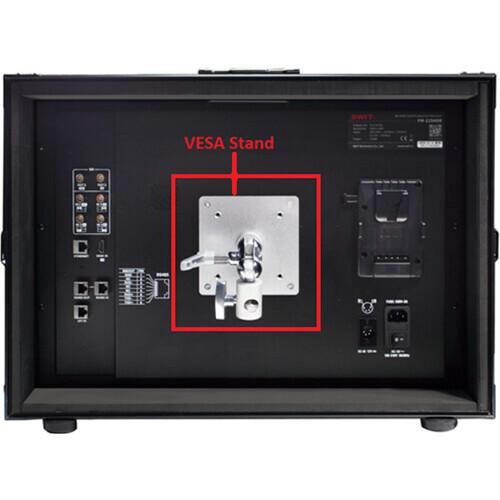

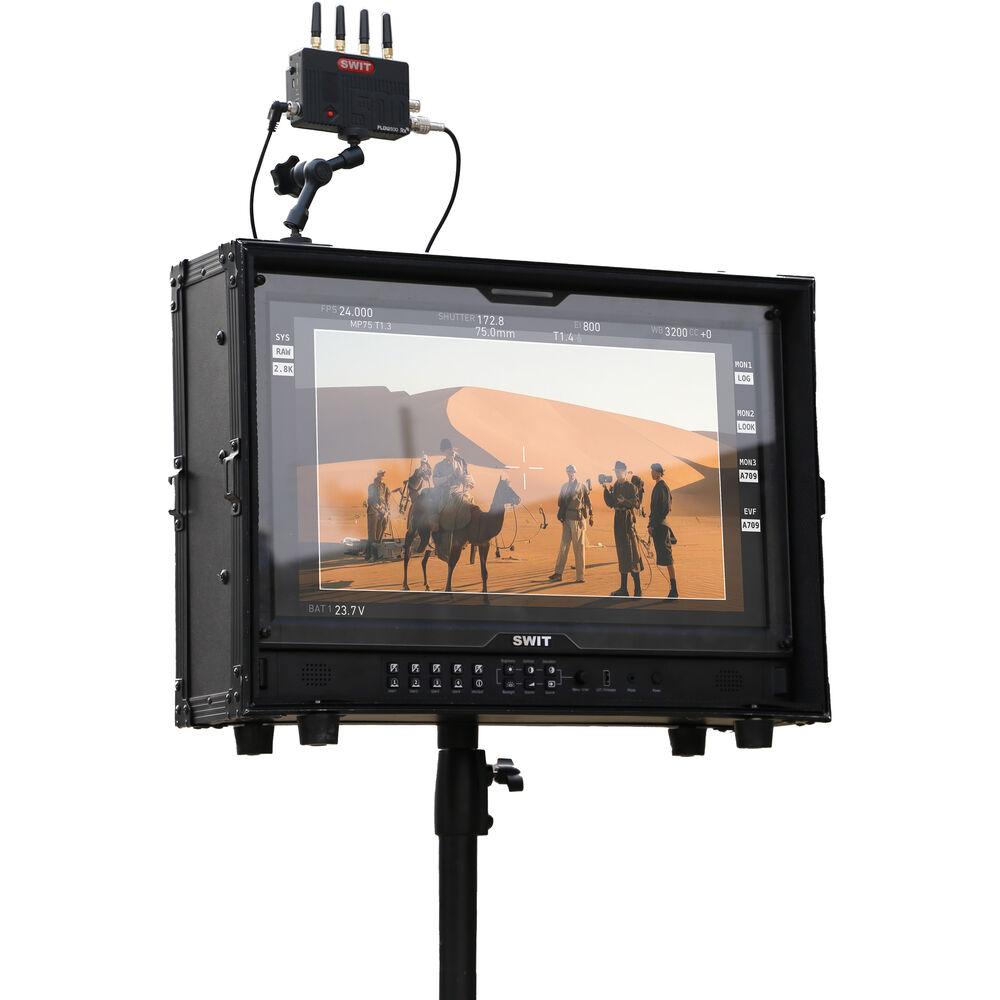

Video assist functions like focus assist, vectors, and eye pattern increase the efficiency of your image quality observation. Additional ports on the monitor include RS-485 UMD input/output, GPI tally input, RJ45 Ethernet input, and a 3.5mm headphone output port. Control the monitor via IP or the front panel buttons. A DC input powers the device and a battery place grommet mounting area allows you to affix an included battery plate of your choice. A VESA 10 x 10mm mounting pattern on the back panel provides a place to secure a C-stand adapter. Two included cheese-style plates offer additional mounting points for accessories like wireless video receivers.

Features at a Glance

QLED display with 1000 cd/m² brightness
Supports PQ/HLG/S-log 3 HDR monitoring
12G-SDI I/O, three 3G-SDI inputs, one HDMI 2.0 input, and one 3G-SDI output
Horizontal/vertical multi-platform live streaming view
Includes aluminum flight case for transport
VESA 10 x 10mm mounting pattern, two cheese-style plates
Acrylic screen protector with high transparency
3D LUT input

Video Assist Functions

Waveform
Vectorscope
Red/blue peaking focus assist
R/G/B/Mono mode
Single-line waveform
R/G/B/Y histogram
Zebra
False color
Anamorphic de-squeeze function (1.33x/1.5x/1.66x/1.8x/2x)

Display

Panel Type	Quantum Dot LCD (QLED)
Display Size	21.5" / 54.6 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	1000 nits / cd/m²
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes: Hybrid Log Gamma
Image Controls	Anamorphic De-Squeeze, Histogram, Vectorscope, Waveform

Inputs/Outputs

Video I/O	1x BNC (12G-SDI) Input 3x BNC (3G-SDI) Input 1x HDMI 2.0 Input 1x RJ45 LAN Input 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	Mono
Power I/O	1x XLR 4-Pin Input
Other I/O	1x RJ45 (RS-485) Input 1x RJ45 (GPI) Input 1x RJ45 (RS-485) Output
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

SDI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50

Power

Input Power	12 to 17 VDC
Battery	1x V-Mount on Included, Interchangeable Plate
Power Consumption	60 W

Mounting

VESA Mounting-Hole Pattern	10 x 10 mm
Tripod/Accessory Mounting	Bottom 1/4"-20 Female 3/8"-16 Female

General

Operating Conditions	32 to 122°F / 0 to 50°C at 10 to 90% Humidity
Storage Conditions	5 to 140°F / -15 to 60°C
Dimensions	22.4 x 15.9 x 10.2" / 570 x 405 x 260 mm (Including Case)
Weight	30.86 lb / 14.00 kg, Including Case
