| Panel Type | LCD |
| Display Size | 23.8" / 60.5 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | Yes: Hybrid Log Gamma |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Assist, Histogram, Waveform, Zebra |
| Video I/O | 4x BNC (12G-SDI) Input 1x HDMI 2.0 Input 4x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI/SDI: 16-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x XLR 4-Pin (17 VDC) Input 1x IEC Input |

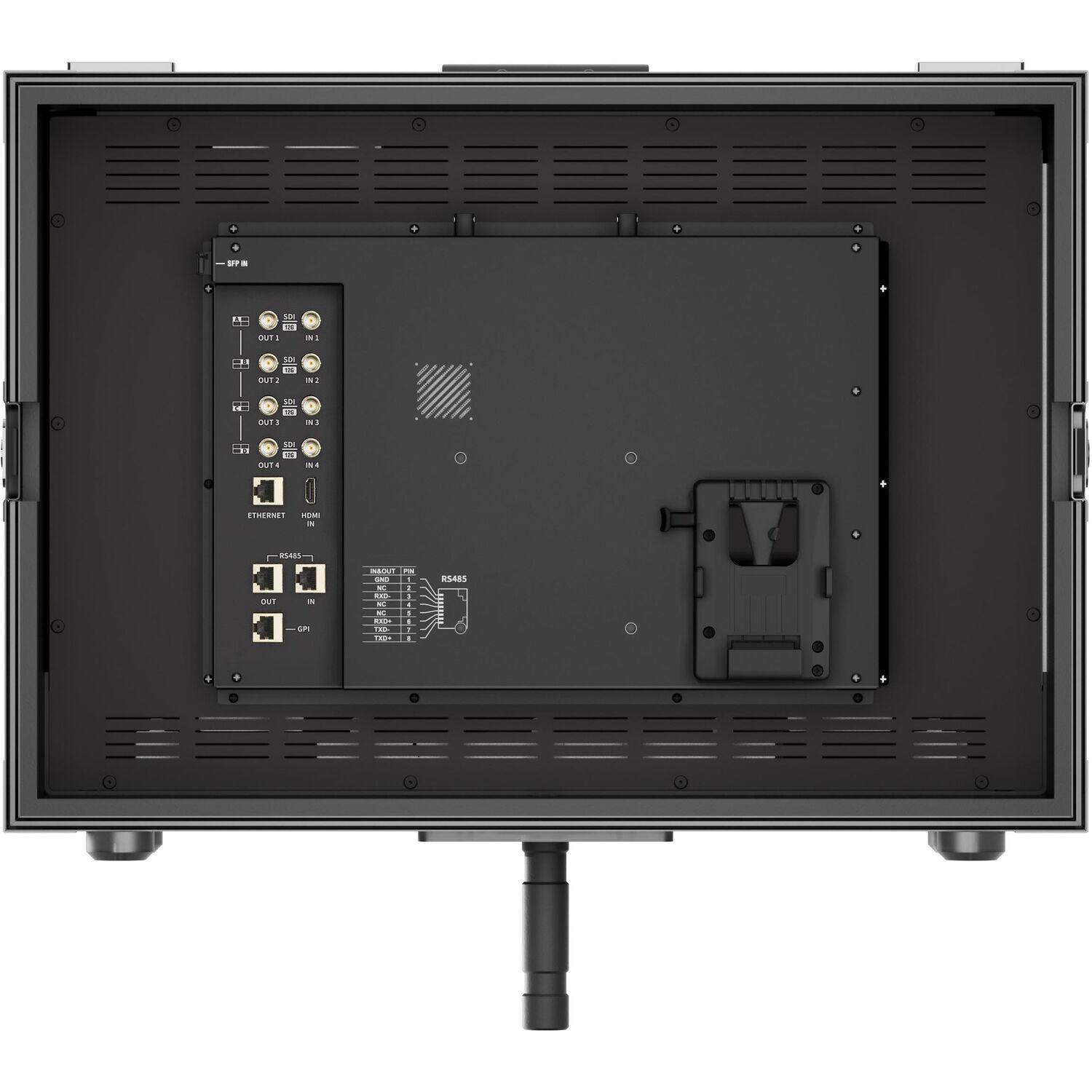

| Other I/O | 1x RJ45 (RS-485) Input 1x RJ45 (10/100 Mb/s Ethernet) Input 1x RJ45 (GPI-Compatible Tally) Input 1x RJ45 (RS-485) Input 1x RJ45 (RS-485) Output 1x USB-A Input |
| Expansion Slots | 1x SFP Slot |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | SDI UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50 HDMI UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Input Power | 12 to 17 VDC 100 to 240 VAC, 50 / 60 Hz |
| Battery | 1x V-Mount on Included, Interchangeable Plate |
| Power Consumption | 120 W |
| Tripod/Accessory Mounting | Bottom 1x 5/8" Receiver Top 1/4"-20 Female 3/8"-16 Female |
| Operating Conditions | 32 to 122°F / 0 to 50°C at 10 to 90% Humidity |
| Storage Conditions | 5 to 140°F / -15 to 60°C at 10 to 90% Humidity |
| Dimensions | 24.9 x 18.9 x 6.1" / 632 x 480 x 155 mm 24.9 x 18.9 x 10.6" / 632 x 480 x 270 mm (Including Case) |
| Weight | 22.60 lb / 10.25 kg 46.5 lb / 21.1 kg, Including AC Adapter, Battery Plate, Bracket, Case |
