SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)

SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)

Name: SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)
Brand: SWIT
SKU: SF-2443-AKH3
Availability: InStock

Brand: SWIT

MFR: BM-H245

SKU: SF-2443-AKH3

Price Available Upon Request

23.8", 1920 x 1080 QLED Display
Quad-Link, Single-Link, Multiview
SDI and HDMI Inputs
Supports up to UHD 4K Resolutions
178° Viewing Angle, 1000:1 Contrast
400 cd/m² Brightness
Supports HDR and 3D LUTs
Multiple Video Assist Functions
Control via RS-485
V-Mount Battery Plate

Items Included

SWIT 23.8" Quad-Link 4K Production Monitor (V-Mount)
V-Mount Battery Plate
2 x Monitor Stand
Power Cable

(In Stock)

Request Now

Categories: Monitors

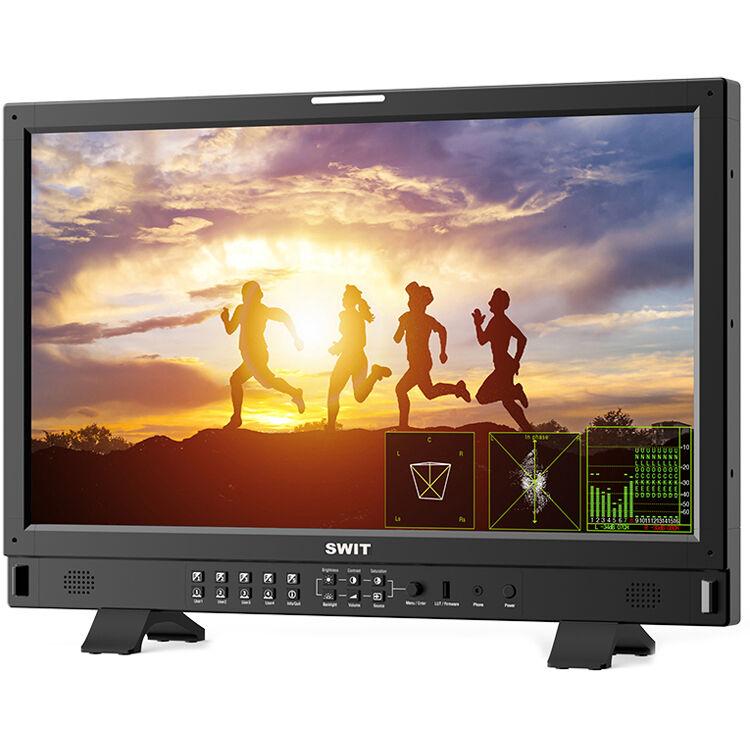

Direct and control the image quality of your next film or broadcast production with the 23.8" Quad-Link 4K Production Monitor from SWIT, thanks to its 1920 x 1080 QLED panel display with video assist and multiview functions. The screen has a 178° viewing angle, a 1000:1 contrast ratio, and 400 cd/m² of brightness. An HDMI 2.0 input and SDI inputs and outputs can support up to 4K video in pixel-to-pixel zoom, single-link, quad-link, and mixed-input multiview. One input source can be copied to four windows to display different HDR/SDR and color gamuts simultaneously for easy comparison.

Payload ID identifies the input video's HDR/SDR EOTFs, color gamut, input range, color space, and color depth automatically. The monitor supports the upload of 3D LUTs via a USB Type-A port for consistent color correction. Other video assist functions like focus assist, vectors, and eye pattern increase the efficiency of your image quality observation. Control over the monitor can be achieved via the RS-485 input with IP control or using the front-panel buttons. Both AC and DC inputs or the included V-mount battery plate can provide power to the device. An included power cable and monitor stand make setup on your next soundstage quick and efficient.

Features at a Glance

VICO 1.97 A Class eye protection reduces eye fatigue by decreasing blue values and balancing the RGB peak
Single-link, quad-link, and mixed-input multiview
Supports input video Payload ID to automatically set HDR/SDR EOTFs, color gamut, input range, color space, and color depth
3D LUT auto calibration with separately available probes
USB Type-A port for firmware updates and custom 3D LUT uploading
Maximum 16-channel embedded audio meters display; select any two to monitor via speaker
Supports Lissajous figures and 5.1 and 7.1 surround sound patterns
Includes power cable and monitor stand

Control

Buttons on front panel to adjust brightness, contrast, saturation, backlight, and volume
Five function keys for custom shortcuts; up to four user-specific presets
Webserver IP remote control via RJ45 connection and RS-485 protocol

Video Assist Functions

Blue only
Eye pattern
False color
Focus assist
Histogram
Markers
Vectors
Zebra

Display

Panel Type	Quantum Dot LCD (QLED)
Display Size	23.8" / 60.5 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	400 nits / cd/m²
Contrast Ratio	1000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes: Dolby Vision/Hybrid Log Gamma
Color Gamut	100% DCI-P3
Image Controls	Blue Only, False Color, Focus Assist, Histogram, Marker Color, Screen Markers, Waveform, Zebra

Inputs/Outputs

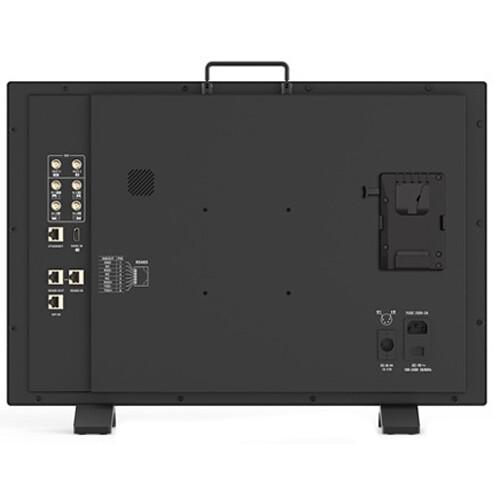

Video I/O	1x BNC (12G-SDI) Input 3x BNC (3G-SDI) Input 1x HDMI 2.0 Input 1x BNC (12G-SDI) Loop Output 1x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI: 16-Channel
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	Mono
Power I/O	1x XLR 4-Pin (17 VDC) Input 1x IEC Input
Other I/O	1x RJ45 (RS-485) Input 1x RJ45 (GPI-Compatible Tally over RS-485) Input 1x RJ45 (LAN) Input 1x RJ45 (RS-485) Output
Media/Memory Card Slot	No

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

SDI (10-Bit 4:2:2 YUV)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Power

Input Power	12 to 17 VDC 100 to 240 VAC, 50 / 60 Hz
Battery	1x V-Mount on Fixed Plate
Power Consumption	60 W

General

Operating Conditions	32 to 122°F / 0 to 50°C at 10 to 90% Humidity
Storage Conditions	5 to 140°F / -15 to 60°C
Dimensions	22.9 x 15.4 x 2.9" / 580.9 x 392.3 x 73.6 mm
Weight	14.8 lb / 6.7 kg
