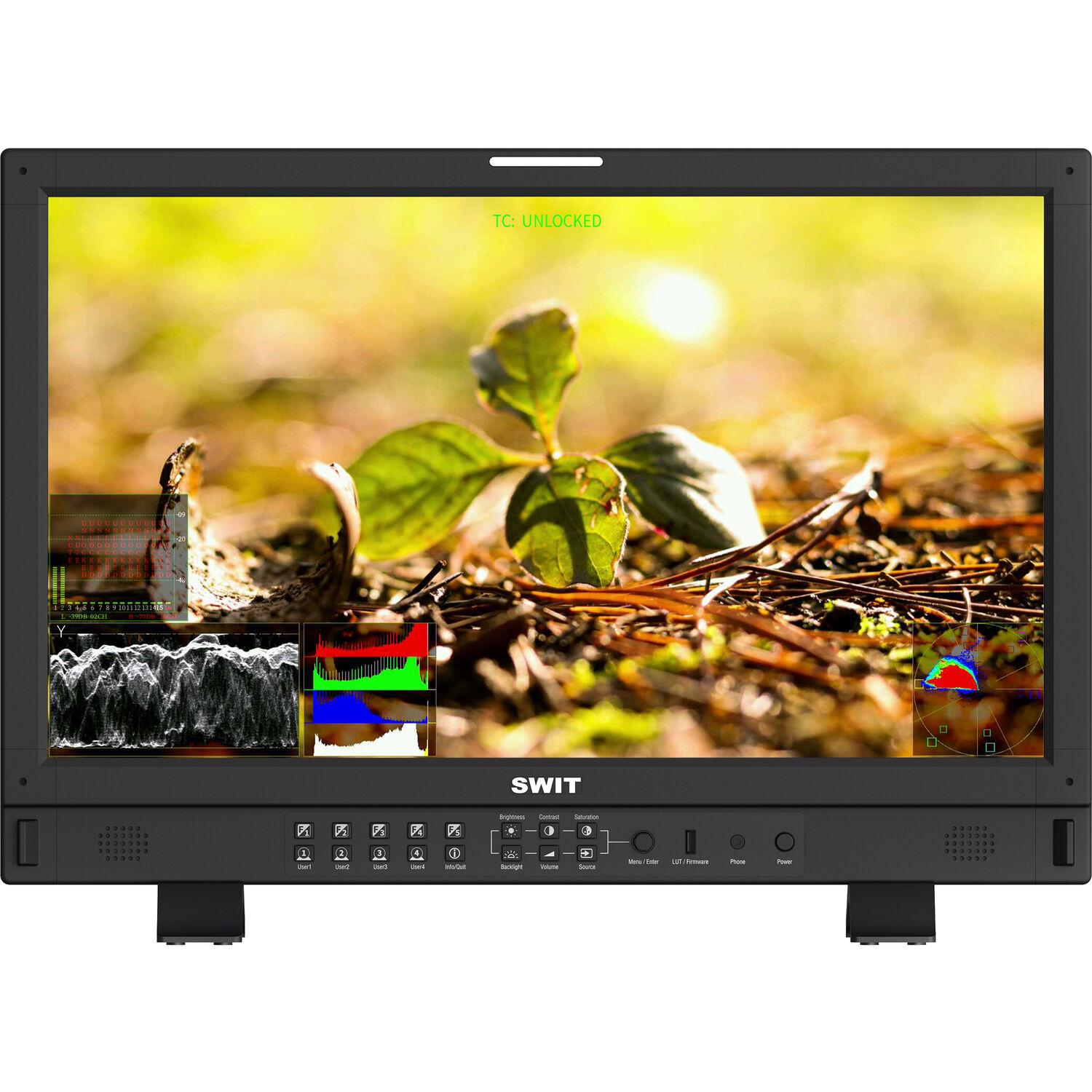

SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor

SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor

Brand: SWIT

MFR: BM-U245HDR

SKU: SF-2443-PWCP

21,668.00 ﾹ

  • 23.8" LCD Panel, 3840 x 2160 Resolution
  • 1000 cd/m² High-Bright LED Backlight
  • Quad 12G-SDI and HDMI 4K/8K Inputs
  • Multiview Options, Numerous Image Tools
  • 3D LUT Self-Calibration/Audio Meters
  • Webserver IP Remote Control

Items Included

  • SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
  • V-Mount Plate
  • 2 x Desktop Foot
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Monitors

Direct and control the image quality of your next film or broadcast production with the 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor from SWIT, thanks to its 3840 x 2160 LCD panel display with video assist and multiview functions. The screen has a 178° viewing angle, 1000:1 contrast ratio, and 1000 cd/m² brightness. One HDMI 2.0 input and four SDI inputs and outputs can support 4K or 8K video in single-link, quad-link, and mixed inputs multiview. One input source can be copied to four windows to display different HDR/SDR and color gamuts simultaneously for easy comparison.

Payload ID identifies the input video's HDR/SDR EOTFs, color gamut, input range, color space, and color depth automatically. The monitor supports the upload of 3D LUTs via a USB Type-A port for consistent color correction. Other video assist functions like focus assist, vectors, and eye pattern increase the efficiency of your image quality observation. Control over the monitor can be achieved via the RS-485 input with IP control or using the front panel buttons. Both an AC and a DC input can provide power to the device, or the included V-mount battery plate or optional Gold mount battery plate. An included power adapter and desktop feet make setup on your next project quick and efficient.

23.8" UHD High-Bright LCD
The 23.8" IPS panel features 3840 x 2160 UHD native resolution, 10-bit color, 1000 cd/m² a high-bright backlit LED display, and a 1000:1 contrast ratio.
UHD 4K/8K Interfaces
The display features four 12G-SDI inputs, four 12G-SDI loop outputs with no latency, and internal 18-bit signal processing, and it supports single-link 4K, quad-link 4K, and quad-link 8K input. It also provides an HDMI 2.0 input and 12G-SDI via fiber input using an optional SFP adapter.
Mixed Inputs Multiviewer
The display allows for independent 12G/6G/3G/HD-SDI or HDMI 1.3/1.4/2.0 mixed inputs in multiview, and it can display waveform, vector, audio meters, EOTF, and color gamut for each input.
HDR/Color Gamut and Payload ID
Color options include gamma 1.0/1.8/2.2/2.4/2.6 or HLG/PQ/Slog3 HDR selection; BT.709, DCI-P3, and BT.2020 selection. It features a payload ID auto-setting input range for color space, HDR/SDR, color gamut, color depth, and more. It supports multi-color gamut, EOTF Viewing, one input source copied to four windows, and simultaneous display of different HDR/SDR and color gamuts.
3D LUT Support
The monitor supports 3D LUTs and has built-in calibration software, supporting X-rite i1 and JETI Specbos calibration tools, allowing tools to plug directly into the USB port for auto calibration. You can import your own 3D LUTs, and it also includes built-in de-log LUTs including Log-C, S-log2, S-log3, C-log, V-log, and RedLogFilm LUTs to convert Log video to 709 SDR or HLG/PQ HDR.
Image Tools
The monitor features multiple built-in image tools, including waveform, vectorscope, focus assist, R/G/B/mono, false color, zebra, H/V delay, freeze, customizable aspect ratios, and user-defined markers. It also supports TSL 3.1/4.0 UMD and text TALLY display, GPI control, web server IP control, and USB firmware updates.
Audio Patterns
You can display up to 16-channel audio level meters and select any two channels to output via 3.5mm socket or speakers. It also supports Lissajous and 5.1+2 surround patterns.

Display
Panel Type
LCD
Display Size
23.8" / 60.5 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
No
Maximum Brightness
1000 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors (10-Bit)
HDR Support
Yes: Hybrid Log Gamma
Color Gamut
100% Rec. 709
91.9% DCI-P3
LUT Support
Yes
Image Controls
Customizable Aspect Ratios, False Color, Focus Assist, H/V Delay, Histogram, R/G/B/Chroma Only, RGB Parade, Screen Markers, Vectorscope, Waveform

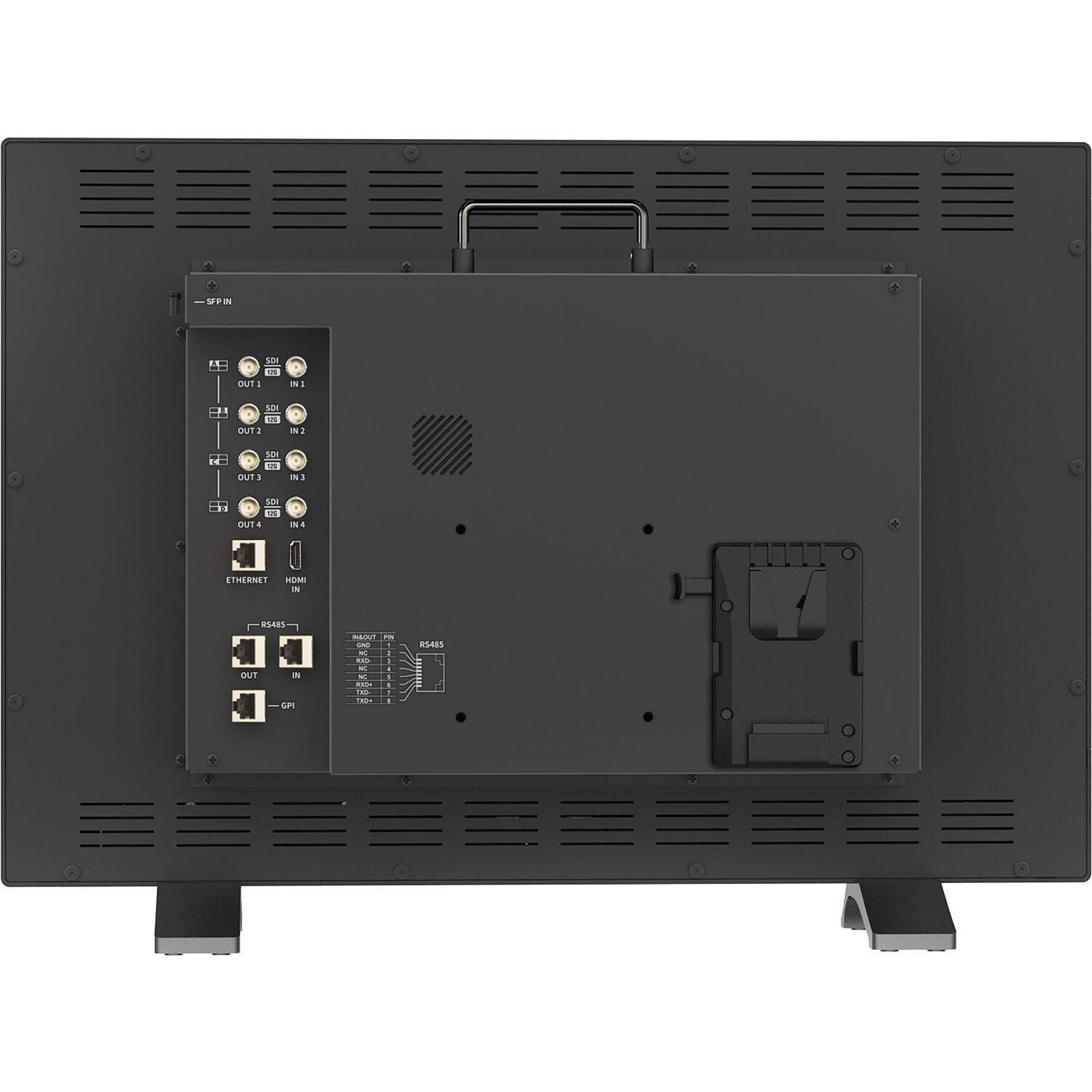

Inputs/Outputs
Video I/O
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input
4x BNC (12G-SDI) Loop Output
Embedded Audio
HDMI/SDI: 16-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Mono
Power I/O
1x IEC (17 VDC) Input
Other I/O
1x RJ45 (RS-485) Input
1x RJ45 (GPI-Compatible Tally) Input
1x RJ45 (10/100 Mb/s Ethernet) Input
1x RJ45 (RS-485) Output
1x USB-A Input
Expansion Slots
1x SFP Slot
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2Ki: 60/59.94/50
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
HDMI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power
Input Power
12 to 17 VDC
100 to 240 VAC, 50 / 60 Hz
Battery
1x V-Mount on Included, Interchangeable Plate
Power Consumption
120 W
General
Operating Conditions
32 to 72°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions
5 to 140°F / -15 to 60°C
Dimensions
23.3 x 15.9 x 3.6" / 593 x 404.5 x 92 mm
Weight
22.05 lb / 10.00 kg
Packaging Info
Package Weight
28 lb
Box Dimensions (LxWxH)
26.9 x 20 x 6.7"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • SWIT 23.8" UHD 4K/8K 12G-SDI HDR Studio LCD Monitor
  • V-Mount Plate
  • 2 x Desktop Foot

Related products

SWIT 21.5" 4K 12G-SDI/HDMI HDR Monitor
SWIT 21.5" 4K 12G-SDI/HDMI HDR Monitor
(0)

9,182.00 ﾹ


SWIT 27" UHD 4K 12G-SDI HDR Studio LCD Monitor
SWIT 27" UHD 4K 12G-SDI HDR Studio LCD Monitor
(0)

25,341.00 ﾹ


SWIT 23.8" 4K/8K 12G-SDI Studio Monitor
SWIT 23.8" 4K/8K 12G-SDI Studio Monitor
(0)

21,668.00 ﾹ

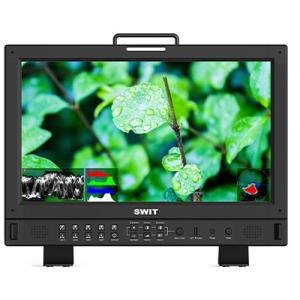

SWIT 17.3" 4K/8K 12G-SDI Studio Monitor
SWIT 17.3" 4K/8K 12G-SDI Studio Monitor
(0)

18,730.00 ﾹ

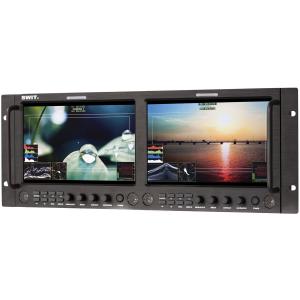

SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor
SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor
(0)

12,303.00 ﾹ

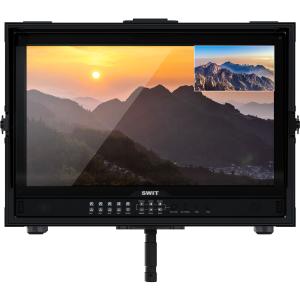

SWIT 23.8" 4K 12G-SDI Quadview HDR Production Monitor with Flight Case
