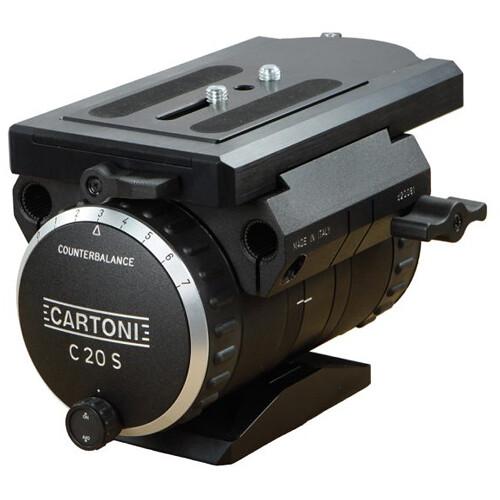

Cartoni C20S Dutch Head with Telescopic Pan Bar
Cartoni C20S Dutch Head with Telescopic Pan Bar

Cartoni C20S Dutch Head with Telescopic Pan Bar

Brand: CARTONI

MFR: H513/D

SKU: SF-2443-RT8L

23,358.00 ﾹ

  • Fluid System, 7 Repeatable Steps plus 0
  • 8-Position Easy-Grip Selector

Items Included

  • Cartoni C20S Dutch Head with Telescopic Pan Bar
  • Telescopic Pan Bar (#D515)
  • QR Mounting Plate (#K512)
  • Limited 5-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Video Tripod Heads , Video Tripod Heads

The C20S Dutch Head with Telescopic Pan Bar from Cartoni is designed to make it simple and straightforward to execute exceptionally smooth side-tilt effects, whether you're shooting video or film. Features a patented fluid damping system with seven precisely repeatable steps plus zero, assuring outstanding drag levels and extraordinary smoothness in both pan and tilt functions. The counterbalance system with its 8-position easy-grip selector and frictionless sliding camera plate, allows the cameraperson to fine-tune the balancing of any camera and lens combination.

Counterbalance System with 7 Settings plus 0
The C20S Dutch features an 8-position easy-grip selector with a sliding balance plate that allows the camera operator to fine-tune the balancing of any camera/lens combination. Additional tilt angle can be also achieved by turning the tilt knob to the OFF position, provided the counterbalance selector ring has been previously set to "0".
Tilt Drag Control
Features three fluid damping modules that assure outstanding drag levels and extraordinary smoothness in the tilt functions. Tilt movements can be dampened with seven precisely repeatable steps of drag, while freewheeling is obtained by simply setting the relevant selector ring to position "0".
Mounts directly on the C20S fluid head or any similar quick release-type heads
Built-in spirit level for easy horizontal leveling
Maximum load capacity of 55 lb

Head
Camera Mounting
1/4"-20 & 3/8"-16 Screws (Quick Release w/ Sliding Balance Plate: Cartoni K512 / Large Euro Plate)
Base Mount
Flat Base with 3/8"-16 Female
Counter Balance
Incremental 7-Step
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+65° to -65°
General
Load Capacity
55 lb / 24.9 kg
Bubble Level
Yes
Weight
11 lb / 5 kg

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Cartoni C20S Dutch Head with Telescopic Pan Bar
  • Telescopic Pan Bar (#D515)
  • QR Mounting Plate (#K512)
  • Limited 5-Year Manufacturer Warranty
