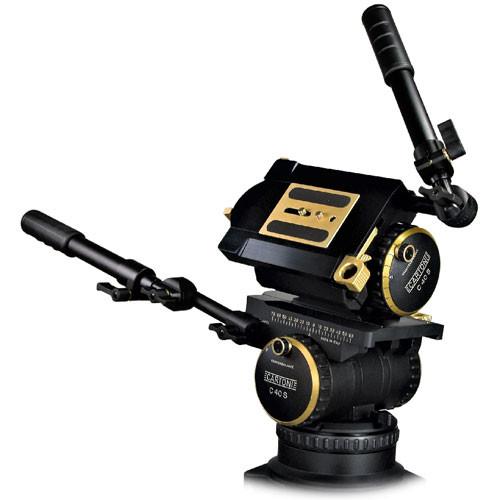

Cartoni K500 C40S Dutch Head
Cartoni K500 C40S Dutch Head

Cartoni K500 C40S Dutch Head

Brand: CARTONI

MFR: H514/D

SKU: SF-2443-TOMT

31,180.00 ﾹ

Items Included

  • Cartoni K500 C40S Dutch Head
  • 1x Telescopic Pan Bar (#K520)
  • Camera Mounting Plate (#K512)
  • Limited 5-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Video Tripod Heads , Video Tripod Heads

The C40S Dutch head is designed to make it simple and straightforward to execute exceptionally smooth side-tilt effects, whether you're shooting video, 16mm or 35mm.

Features a patented fluid damping system with 7 precisely repeatable steps plus 0, assuring outstanding drag levels and extraordinary smoothness in both pan and tilt functions. The counterbalance system with its 8-position easy grip selector and frictionless sliding camera plate, allows the cameraperson to fine tune the balancing of any camera and lens combination.

Counterbalance System with 7 Settings plus 0
The C40S Dutch features an 8-position easy grip selector with a sliding balance plate, allowing the cameraperson to fine tune an extremely wide range of cameras weighing up to 100 lbs throughout a tilt range of -/+ 65 degrees. Additional tilt angle can be also achieved by turning the tilt knob to OFF position, provided the counterbalance selector ring has been previously set to "0".
Tilt Drag Control
Features 3-fluid damping modules, which assure outstanding, drag levels and extraordinary smoothness in the tilt functions. Tilt movements can be dampened with 7 precisely repeatable steps of drag, while freewheeling is obtained by simply setting the relevant selector ring to position "0".
Mounts directly on the C40S fluid head or any similar quick release type heads
Built-in spirit level for easy horizontal leveling
Maximum load capacity of: 100 lbs

Head
Camera Mounting
Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release w/ Sliding Balance Plate: Large Euro Plate / Cartoni K512)
Base Mount
Flat Base with 3/8"-16 Female
Counter Balance
Incremental 7-Step
Pan & Tilt
Drag Control
Yes
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Vertical Tilt
+65° to -65°
General
Load Capacity
100 lb / 45.4 kg
Bubble Level
Yes
Weight
17 lb / 7.7 kg

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Cartoni K500 C40S Dutch Head
  • 1x Telescopic Pan Bar (#K520)
  • Camera Mounting Plate (#K512)
  • Limited 5-Year Manufacturer Warranty
