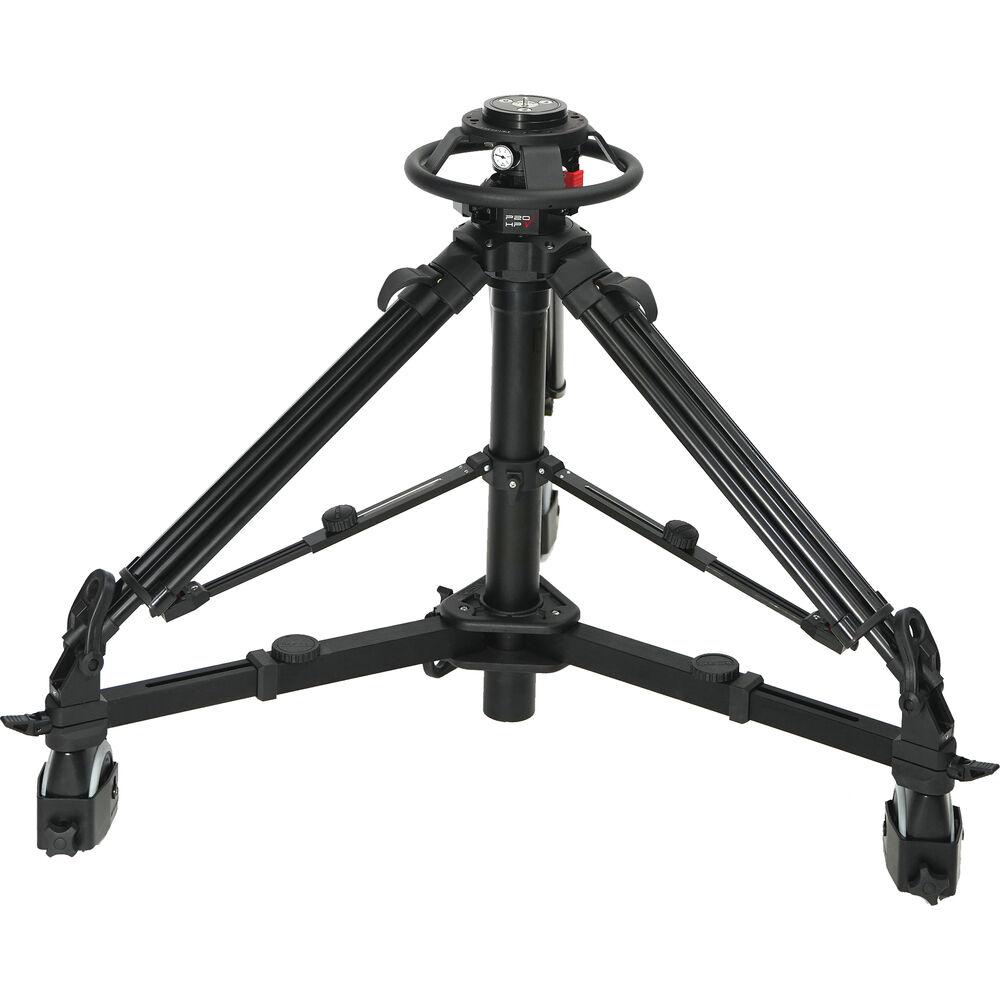

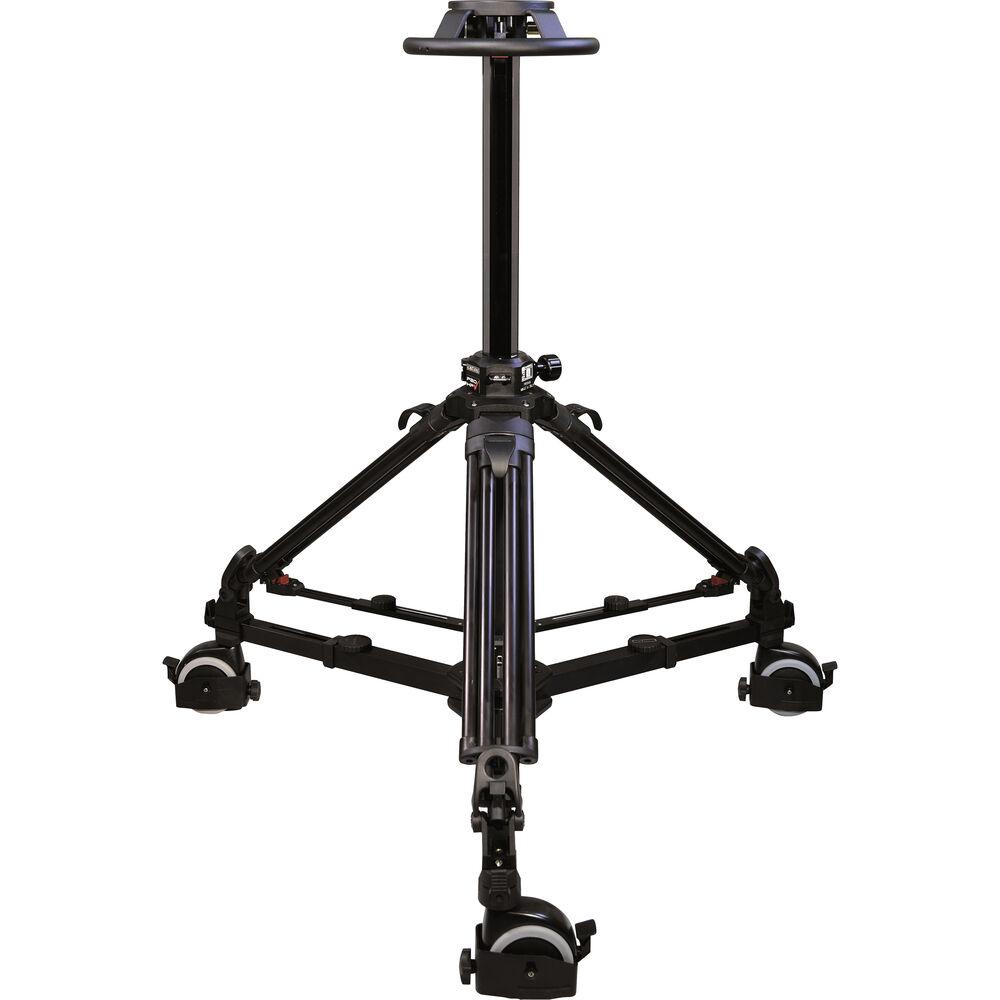

Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump
Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump
Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump
Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump

Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump

Brand: CARTONI

MFR: P022

SKU: SF-2443-WFHB

21,595.00 ﾹ

  • For PTZ Camera & Teleprompter Use
  • Pneumatic PTZ Camera Pedestal
  • 100mm Bowl Adapter, Air Pump
  • 55 lb Load Capacity, 31 lb Weight
  • 36 to 70" Working Height Range
  • 4" Wheels with Independent Locks
  • 15.75" Stroke, 6-Position Track Lock

Items Included

  • Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump
  • 100mm Bowl Adapter
  • Manual Air Pump
  • Limited 5-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Pedestals & Accessories , Pedestals & Accessories

Perform smooth PTZ camera movements using the P20 HP Pedestal with 100mm Bowl Adapter & Air Pump from Cartoni. This solid pedestal camera mount uses a vertical pneumatic column and a rugged dolly with soft 4" wheels to create smooth vertical and horizontal camera movement. The included 100mm bowl adapter provides a solid base for compatible tripod heads.

The P20 HP Pedestal supports camera rigs weighing up to 55 lb, and its pneumatic column features a 15.75" on-shot stroke. This allows it to achieve a total working height range of 36 to 70" with the column engaged. Its three-wheel dolly features 4" diameter wheels with individual brakes, a six-position track lock, and guards to keep cables away from the wheels. A manual hand pump is included to adjust the air pressure in the column.

100mm Bowl Adapter
This pedestal comes with a bowl 100mm adapter for compatible tripod heads.
Pneumatic Column
  • Hexagonal pneumatic column for maximum stability and smoothness.
  • The pneumatic column enables an on-shot stroke of 15.75" with one smooth and precise movement.
  • This column works with compressed air and can be serviced with the included hand pump.
Folding Dolly
The folding, wheeled dolly features a 6-position track lock and cable guards.
4" Dolly Wheels
The dolly has 4" interlocking wheels with individual foot brakes.

General
Minimum Height
29" / 74 cm (Pedestal Only)
36" /91.4 cm (with Pneumatic Column)
Maximum Height
63" / 161 cm (Pedestal Only)
70" / 117.8 cm (with Pneumatic Column)
Leg Stages/Sections
2-Stage
Diameter
4" / 101 mm (Wheel)
Physical
Mounting
1x 100mm Bowl Adapter
Load Capacity
55 lb / 24.9 kg
Color
Black
Dimensions
15.75" / 40.01 cm (On-Shot Stroke)
26" / 66 cm (Doorway Tracking Minimum)
38" / 96.5 cm (Doorway Tracking Maximum)
Weight
31 lb / 14.1 kg

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Cartoni P20 HP Pedestal with 100mm Bowl Adapter & Air Pump
  • 100mm Bowl Adapter
  • Manual Air Pump
  • Limited 5-Year Manufacturer Warranty
