Cartoni P70 HP Steering Pedestal with Adapter & Air Pump
Cartoni P70 HP Steering Pedestal with Adapter & Air Pump
Cartoni P70 HP Steering Pedestal with Adapter & Air Pump
Cartoni P70 HP Steering Pedestal with Adapter & Air Pump

Cartoni P70 HP Steering Pedestal with Adapter & Air Pump

Brand: CARTONI

MFR: P072/ST

SKU: SF-2443-WVOT

52,664.00 ﾹ

  • For Studio Prompters/PTZ Cameras
  • Durable, Lightweight Pneumatic Pedestal
  • Dolly & Wheel Locks, Cable Guards
  • Includes Air Pump, Counterweight Set
  • Works with 4-Hole Heads
  • 165 lb Load Capacity, Weighs 99 lb
  • Smooth Vertical Movement, 20" Stroke
  • Includes Removable Foot Bar

Items Included

  • Cartoni P70 HP Steering Pedestal with Adapter & Air Pump
  • Manual Air Pump (10 Bar)
  • Steering Wheel
  • Foot Bar
  • 4 x Counterweight (1.1 lb)
  • Cable Guard Set
  • Limited 3-Year Manufacturer Warranty
    Registration Extension: 2-Year
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Pedestals & Accessories , Pedestals & Accessories

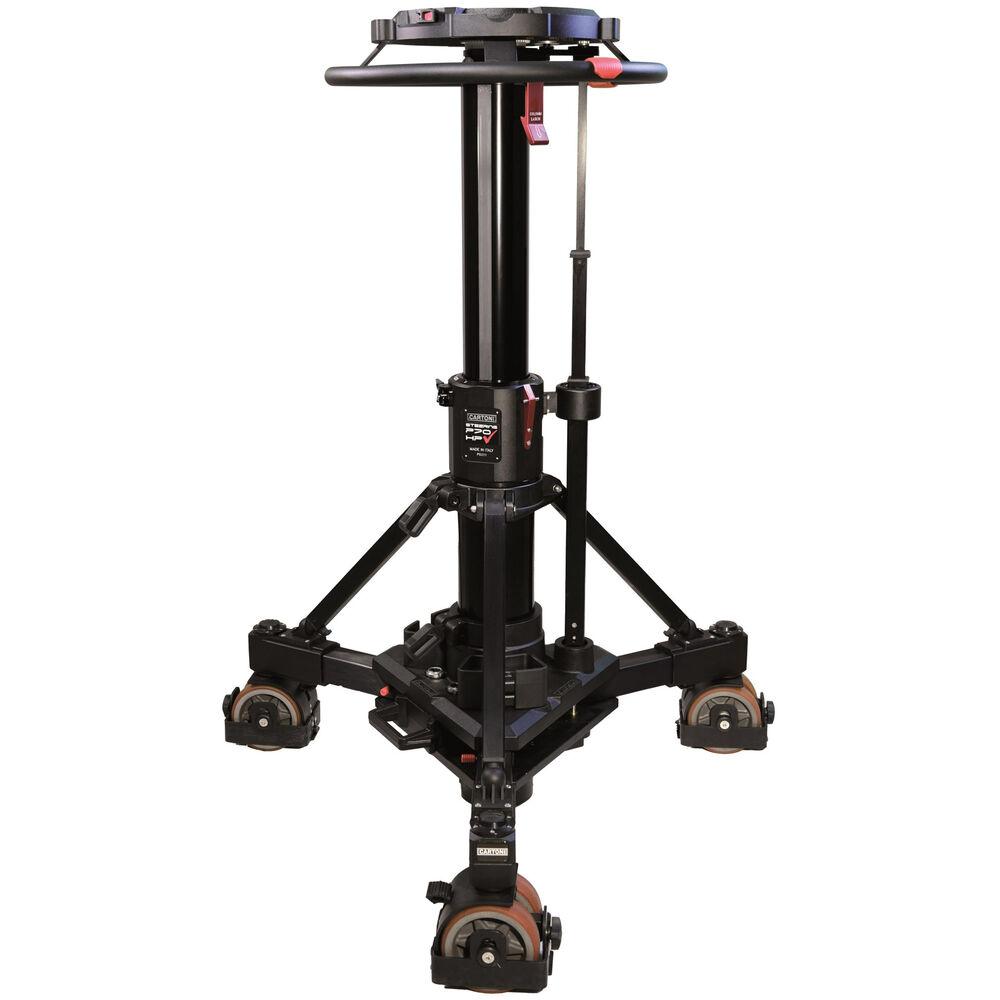

Perform smooth, gliding vertical and horizontal PTZ camera movements with this P70 HP Steering Pedestal with Adapter & Air Pump from Cartoni. This two-stage pedestal mount features a vertical pneumatic column and a rugged dolly with heavy-duty wheels to create smooth vertical and horizontal camera movement. A removable steering wheel and foot bar allow you to perform silky smooth, precise movements, and it supports camera heads with four bolts or bowl bases.

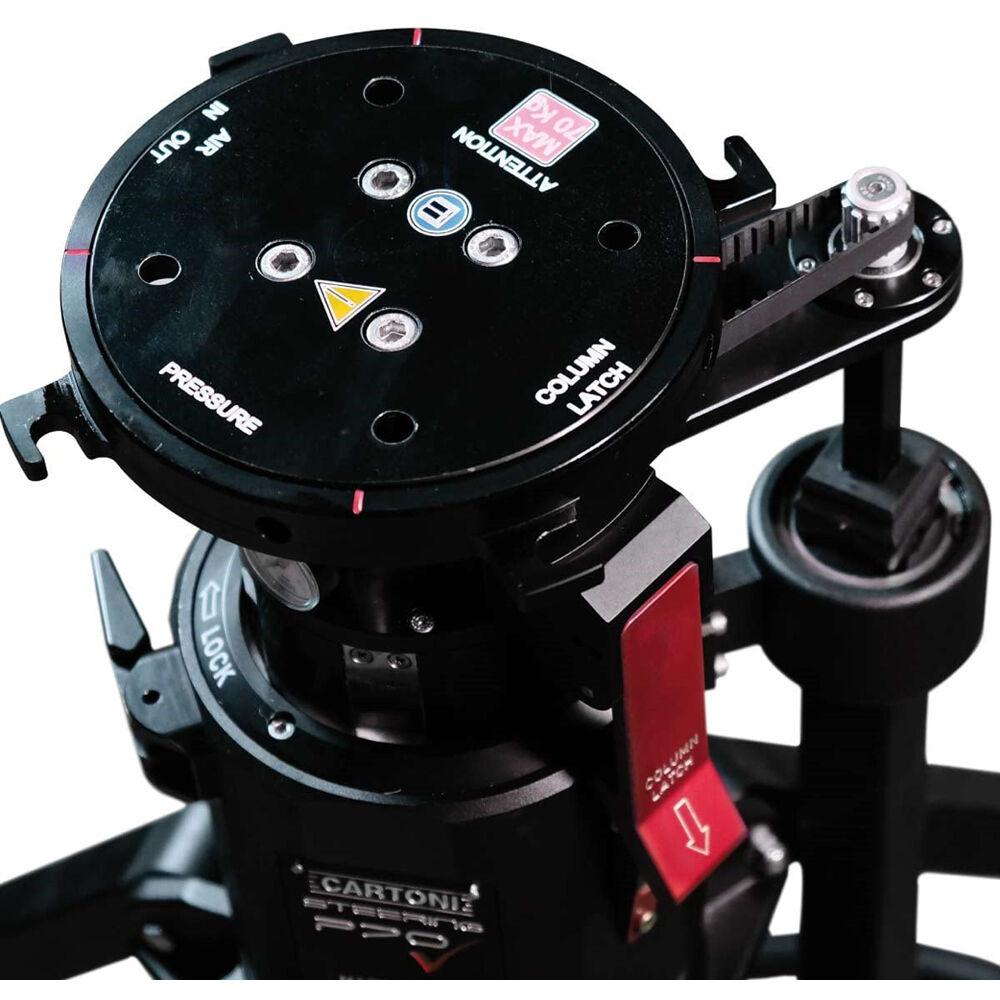

The P70 supports a camera rig up to 165 lb, and its pneumatic column features a maximum psi of 132 lb, providing single smooth glides with up to 20" strokes. An adjustable air valve allows air in and out to adjust the pressure, which can be monitored on a gauge at the top of the column. Its three-wheel dolly features 5" diameter wheels, brakes on each wheel, and cable guards to keep cables away from the wheels. A manual hand pump is included to adjust the air pressure in the column, and four 1.1 lb counterweights are included to keep the pedestal balanced.

On-Shot Stroke
The pneumatic column enables an "on-shot" stroke of 20" with its initial stage and a 17.7" stroke with its second stage for one smooth and precise movement of the camera operator. The column works with compressed air and can be serviced with a hand pump or with optional nitrogen or compressed air.
P70 Dolly
The steering dolly is equipped with heavy-duty 5" wheels with locks and cable guards.
Load Capacity
The pedestal can support loads up to 165 lb and features a maximum pressure of 132 psi.
Steering
The removable steering wheel provides precise steering, which also supports the crab position.
Counterweights

General
Compatibility
Not Specified by Manufacturer
Other
Maximum Pressure: 9 atm / 132 psi
Physical
Mounting
4x Bolt
Load Capacity
165.3 lb / 75 kg
Color
Black
Dimensions
31.5" / 80 cm (Minimum Height)
49.2" / 125 cm (Maximum Height)
31.9" / 81 cm (Minimum Doorway Tracking Width)
4.9" / 12.5 cm (Wheel Diameter)
17.7" / 45 cm (On-Shot Stroke)
Weight
99.2 lb / 45 kg
