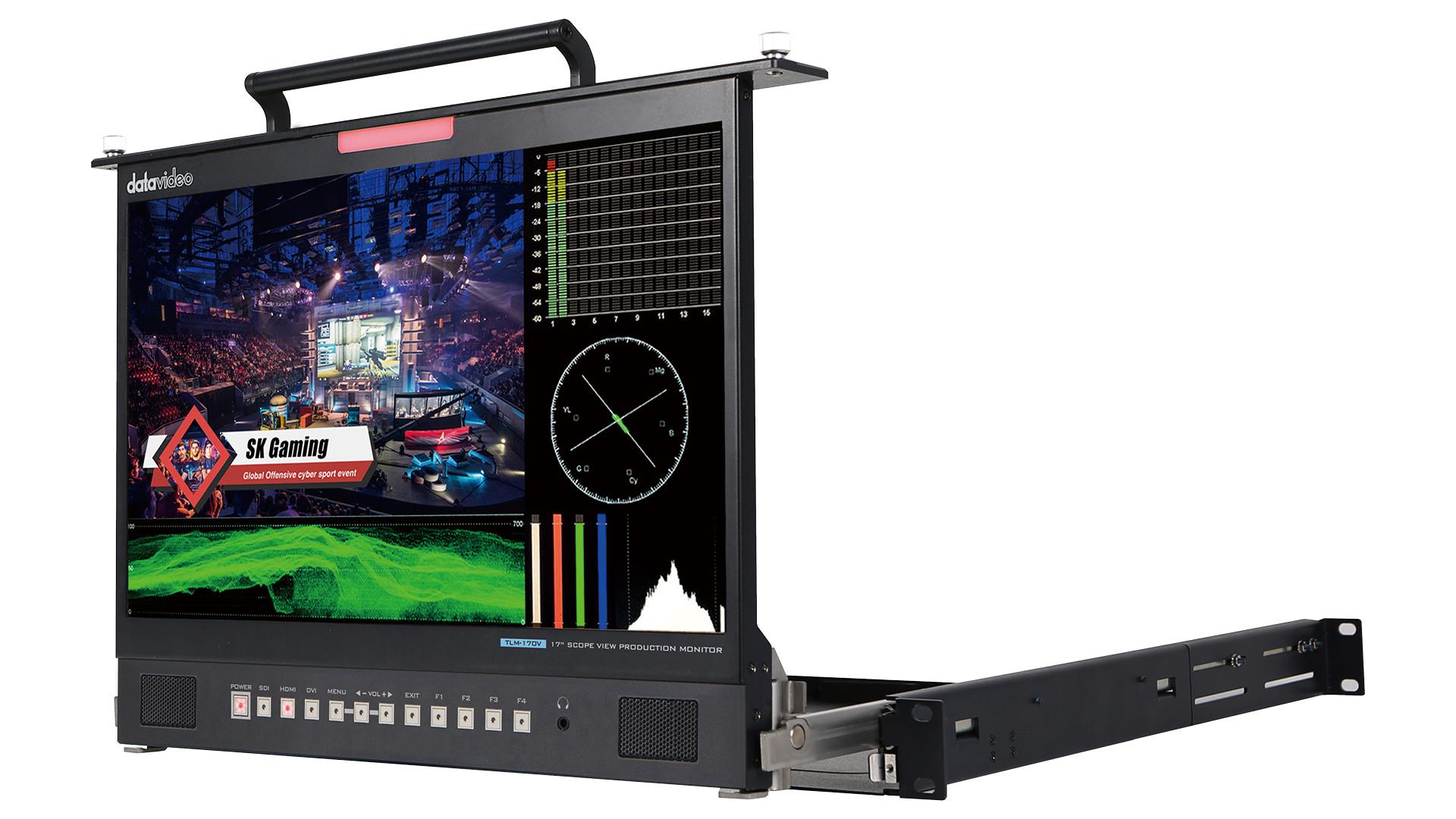

17.3'' Full HD Pull-Out Monitor
1 x TLM-170V product
1 x AD Switch DC 12V
4 x Screw φ4.0*6m/m
8 x Screw φ3.0*6m/m
8 x Screw M5 x 10mm
5 x Cable tie
Categories: Monitors
Screen | 17.3" LED Backlit |
Chassis | 1RU Pull-Out |
Resolution | 1920x1080 |
Viewing Angle | (H) +89/-89° (V) +89/-89° |
Luminance/Contrast | 300cd/m² 700:1 |
Video Inputs | 1x 3G/HD/SD-SDI 2x HDMI |
Loop Through | 1x 3G/HD/SD-SDI |
Supported Input Resolutions | 1080p(23.98/24/25/29.97/30/50/59.95/60Hz) 1080i(50/59.94/60Hz), 720p(50/59.94/60Hz), 576i(PAL), 480i(NTSC) |
Aspect Ratio | 16:9, 4:3 |
Aspect Marker | YES |
Safty Marker | YES |
Tally LED | Live (Red) Cued (Green) |
Audio In/Out | 2x Speaker 1x Headphone Jack |
Special Features | SDI and HDMI cross conversion, Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field |
Dimension (WxHxD) | 485.8 x 492.7 x 44.5mm |
Weight | 6.7 kg |
Operating Temp. Range | 0~40 °C |
Power | DC 12V, 21.9W |
