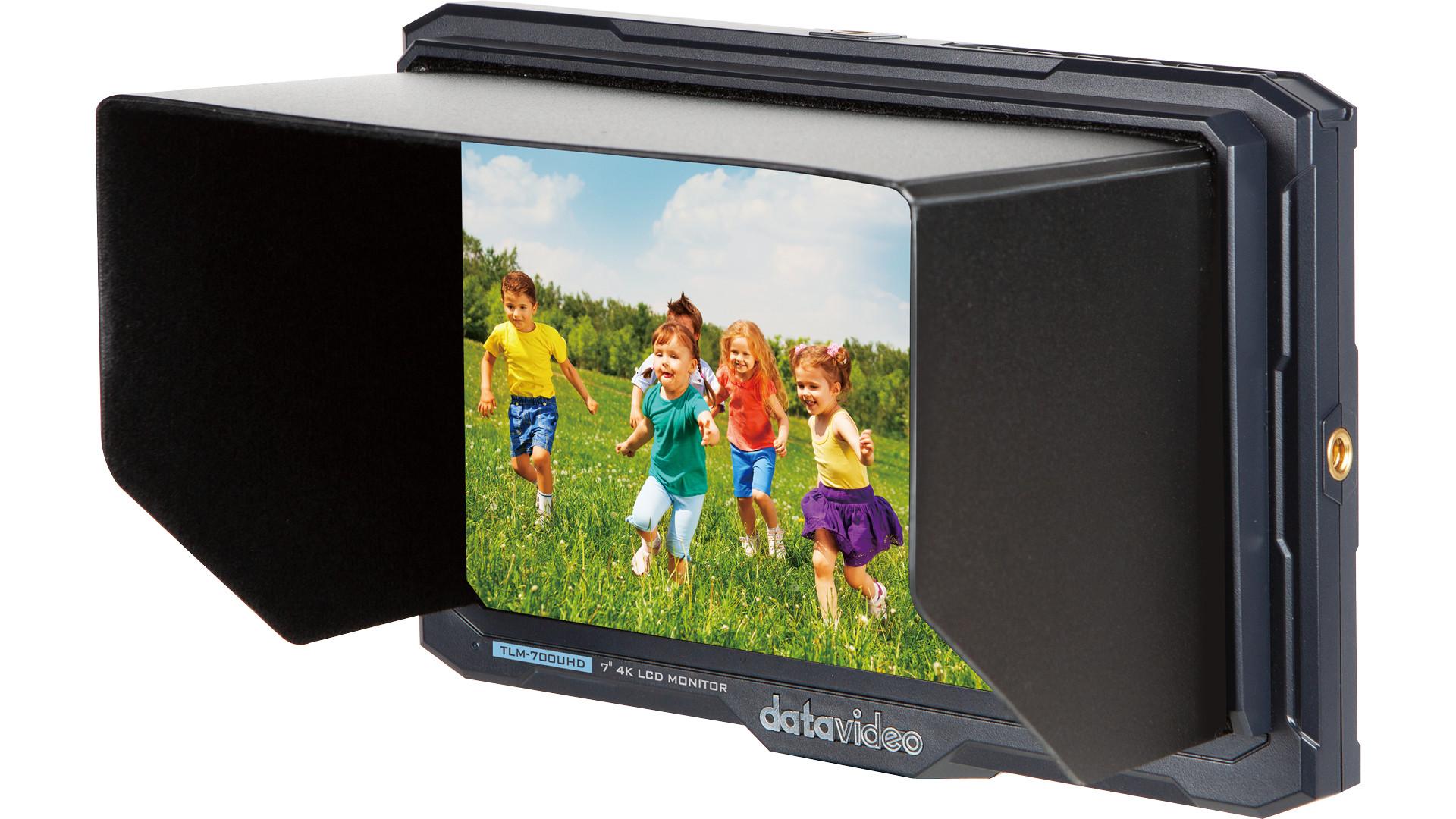

Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920x1080 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.
1 x TLM-700UHD product
1 x AD Switch DC 12V
1 x Folding sun shade cover
1 x HDMI A/C cable
1 x Battery plate
1 x Hot shoe mount
Categories: Monitors
Screen | 7" TFT LCD |

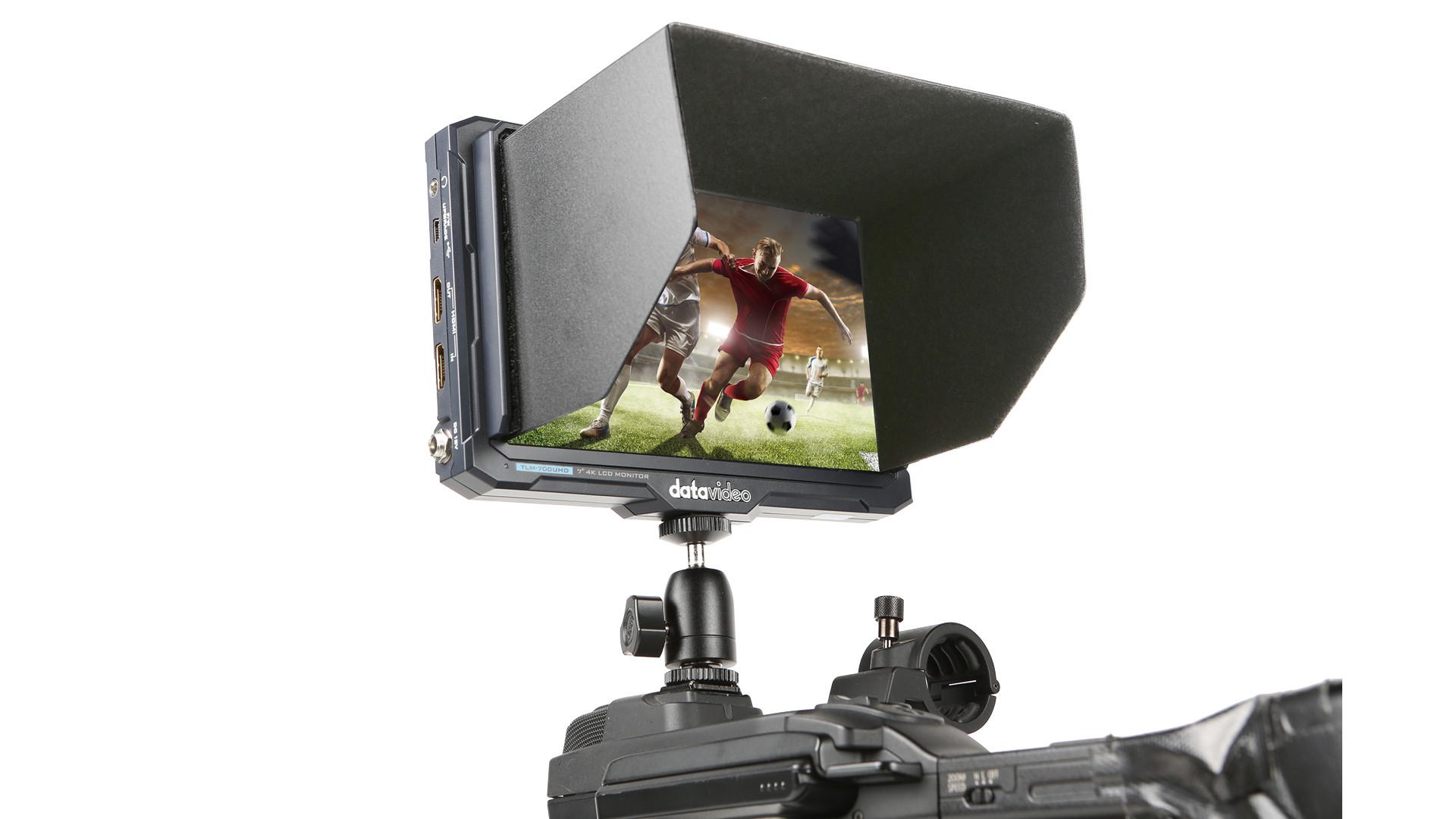

Chassis | Camera Mount |
Resolution | 1920x1200 |
Viewing Angle | (H) +85/-85° (V) +85/-85° |
Luminance/Contrast | 450cd/m² 1000:1 |
Video Inputs | 1x HDMI (2.0), HDCP 2.2 |
Loop Through | 1x HDMI (2.0) |
Supported Input Resolutions | 4096x2160p (23.98/24/25/29.97/30/50/59.94/60Hz) 3840x2160p (23.98/24/25/29.97/30/50/59.94/60Hz) 2048x1080p (50/59.94/60Hz) 1080p (23.98/24/25/29.97/30/50/59.94/60Hz)50i/59.94i/60i) 1080i (50/59.94/60Hz) 720p (23.98/24/25/29.97/30/50/59.94/60Hz) 576i(50Hz), 576p(50Hz), 480i(59.94/60Hz), 480p(59.94/60Hz) |
Aspect Ratio | Full/16:9/1.85:1/2.35:1/4:3/3:2 |
Aspect Marker | Off/16:9/1.85:1/2.35:1/4:3/3:2/9:16 |
Safty Marker | Off/95%/93%/90%/88%/85%/80% |
Tally LED | ---- |
Audio In/Out | Embedded Audio (48KHz sampling) Analog Stereo (Phone Jack), Speaker x1 (2W) |
Special Features | Focus assist (peaking), False Color, Histogram, Exposure, Pixel to Pixel Zoom, Underscan, Check Field (blue-only mode, monochrome mode) |
Dimension (WxHxD) | 182 x 129 x 37 mm |
Weight | 0.3 kg |
Operating Temp. Range | 0~40 °C |
Power | DC 12V, 12W |
